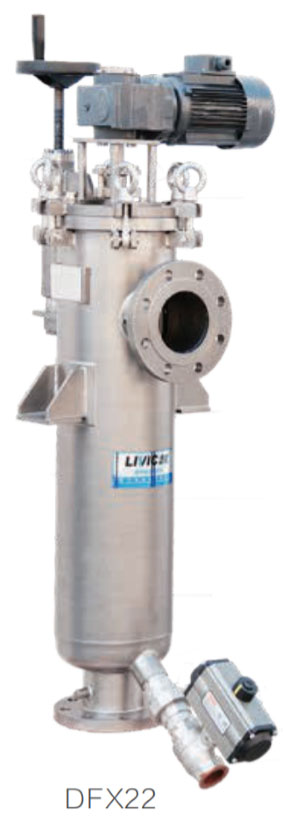

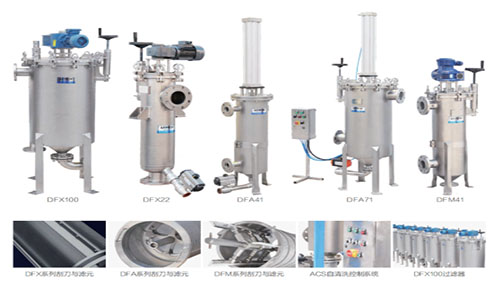

Rotary filter DFX series main advantages

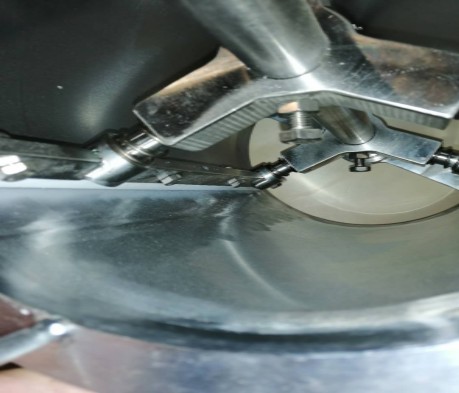

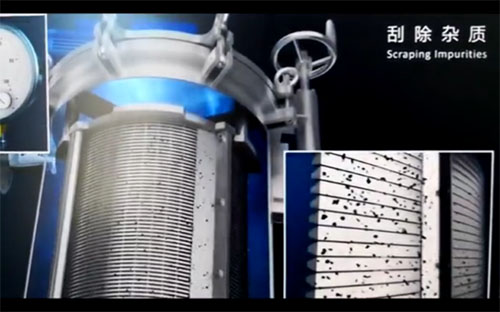

1. Scrape from the outside, the scraper filter element and the filter rotate between the scraper, the stirring and dispersing effect is obvious, which can effectively avoid the deposition of impurities
2. With the same filter area, the working volume is smaller, reducing the waste of slurry discharge during disassembly and maintenance
3. Top-quality filter element, precise gap, more efficient filtering of large particles in the slurry, thereby effectively extending the service life of the filter element of the terminal ROKI filter, upgradeable options: higher precision 25 micron, 50 micron filter element, The high-throughput, low-pressure loss filter element is integrally formed at one time. There are no joints on the scraped surface. The surface is extremely smooth. The scraper has low sliding resistance, good scraping effect and low wear, which further extends the maintenance cycle of the filter.
4. LOKO heavy-duty clamps and auxiliary opening device, the shell is safe and reliable, the disassembly and assembly operation is easy and convenient, one person can complete
5. There is a hollow floating ball inside the filter element, which further reduces the working volume by 50%, reduces the waste of discharge, and has significant benefits
6. The shaft seal design is more reliable, has a longer life, reduces leakage, reduces maintenance, manual swirling feed, and prevents deposition and adhesion of slurry to the inner wall.
Comparison of qualified and unqualified filter elements
Qualified filter element welding seam and smooth surface
Qualified filter element welding seam and smooth surface
